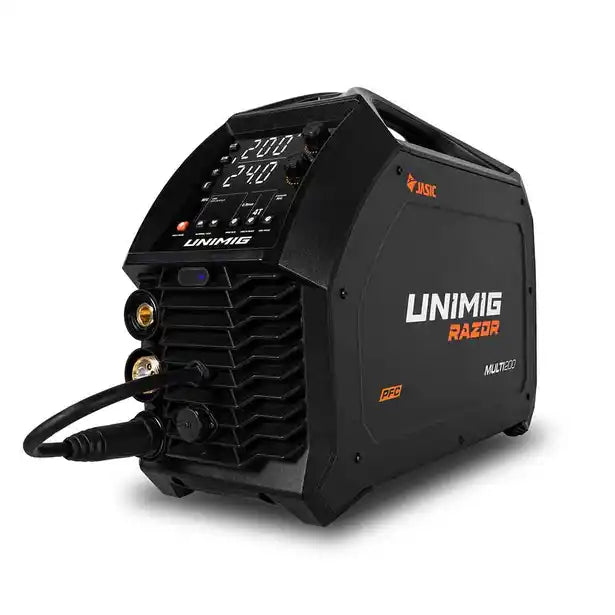

UNIMIG Razor 200 10A MIG/TIG/STICK Multi Process Welder U11012

Get a powerful machine in a portable body, designed with a 10A outlet. This three-in-one welder is perfect for the workshop or the worksite.

• 10A Plug
• HD Backlit Interface
• Advanced MMA Features
• Optional Remote Control
• Smart Fan
• Synergic MIG Control
• Digital Control MIG Torch
• Spool Gun Ready
• Gas & Gasless MIG
• Geared Wire Drive
• Multi-Process Welding
• Foot Control Ready
• Trigger Controlled DC Lift Arc TIG

Specifications

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 10 AMP
• Ieff (A): 9.7
• Rated Output: 30A/15.5V - 200A/24V
• No Load Voltage (V): 67
• Protection Class: IP23S
• Insulation Class: H
• Minimum Generator (kVA): 8
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• MIG Welding Current Range: 30-200A
• MIG Duty Cycle @ 40°C: 15% @ 200A / 60% @ 100A / 100% @ 77A
• MIG Welding Thickness Range: 1-10mm
• TIG Function Type: DC Lift Arc
• TIG Welding Current Range: 5-200A
• TIG Duty Cycle @ 40°C: 20% @ 200A / 60% @ 115A / 100% @ 89A
• TIG Welding Thickness Range: 1-8mm
• STICK Welding Current Range: 20-180A
• STICK Duty Cycle @ 40°C: 15% @ 180A / 60% @ 90A /100% @ 70A
• STICK Welding Thickness Range: 2-12mm
