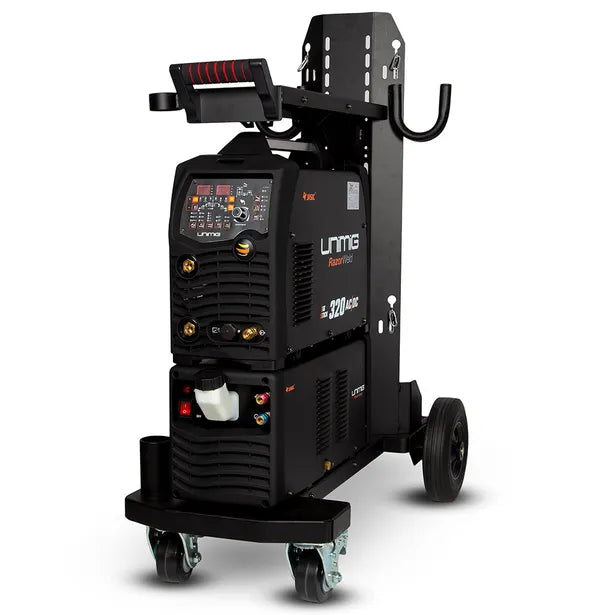

UNIMIG RAZOR 320 10A AC/DC TIG Welder w/ Water Cooler U12009

The RAZOR 320 AC/DC gives you maximum control over High-Frequency AC/DC TIG welding for incredible results from start to finish. This Three-Phase machine features Square, Trapezoidal and Sine AC output waveforms, as well as MIX ARC AC/DC functions.

Combined with the T3W Water-Cooled TIG Torch and Water Cooler Trolley, which uses our Bi-Flow Technology – high capacity cooling chambers that remove excessive heat at the source – you get greater performance from the TIG torch.

• AC/DC High-Frequency TIG

• Pulse TIG Function

• AC TIG Waveforms
  - Square, Trapezoidal, Sine

• Mixed Arc AC/DC

• Foot Control Ready

• 2T/4T Torch Modes

• Remote Control Module

Specifications

• Primary input voltage: 415V Three Phase

• Supply plug: No plug supplied (20 AMP Recommended)

• Rated input power (kVA): 9

• Ieff (A): 10

• Rated output: 5-315A

• No load voltage (V): 9-73

• Protection class: IP21S

• Insulation class: F

• Power factor: 0.7

• Minimum generator (kVA): 10

• Dinse connector: 35/50

• Standard: AS/NZ60974-1, AS/NZ60974-10

• Welds: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium,
• Zinc Alloys

• TIG Function type: AC/DC HF TIG & AC/DC Pulse

• TIG Welding current range: 5-315A

• TIG Duty cycle @ 40°C: 30% @ 315A

• TIG Welding thickness range: 1-16mm

• STICK Welding current range: 10-270A

• STICK Duty cycle @ 40°C: 30% @ 270A

• STICK Electrode range: 2.5-4.0mm

• STICK Welding thickness range: 2-16mm

• ARC Force: 0-40

• VRD: Yes

• Foot control connection: UTJRFC-4

• Crater current control: Yes

• Thermal overload protection: Over Temperature Warning
